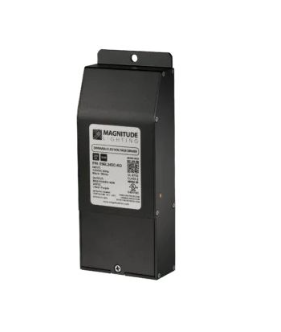

Magnitude Lighting E20L24DC

E20L24DC Product Description

The E-Series Listed is an electronic Class 2, phase- dimmable, LED driver with a low profile aluminum case, making it the perfect choice for tape lighting, kick/cove lighting, under cabinet lighting and multiple other residential and commercial lighting applications. The UL Listed enclosure includes a wiring compartment with two 1/2" knockouts for easy installation, eliminating the need for a separate junction box. The driver features auto reset, over current and short circuit protection as well as an efficiency over 90% -- resulting in low operating case temperature. The E-SERIES Listed is phase-dimmable down to 1% with leading edge TRIAC dimmers.

Features:

Installation: Surface-Mount Junction Box with Multiple 1/2" Knock-Outs
Driver Types: Class 2 Single Channel
Dimming: Phase Dimmable Down to 1% with Leading Edge TRIAC Dimmer
Input Voltage: 120VAC, 50/60Hz
Output Voltage: 12VDC or 24VDC Available
Environmental: NEMA 3R
Listing: UL Listed
Certifications: UL 8750, CSA C22.2 No. 250 13-14
Warranty: 5-Year Warranty

Specifications:

Input

Input Voltage Range: 120VAC ± 10%
Input Frequency: 50 / 60Hz
Input Current: 0.20A@120VAC (12VDC), 0.20A@120VAC (24VDC)
Efficiency: > 90% (12VDC), > 90% (24VDC)
Power Factor: 0.95
Output

Max Load: 20W
Output Voltage @ Max Load: 12.0VDC, 24.0VDC
Output Current @ Max Load: 1.7A (12VDC), 0.90A (24VDC)
Environmental

Max Ambient Temperature: -22°F - 122°F
Dimming

Minimum Dimming Level: 1%
Protection

Circuit Breaker: Short Circuit & Over-Voltage Auto-Reset
Mechanical Housing

Primary Leads: 18 AWG
Secondary Leads: 14 AWG
Length: 6.77"
Width: 2.67"
Height: 1.30"
Weight: 9 oz
Housing Material: Coated Metal
Housing Color: Black
Junction Box: Yes
Mounting: One-Hole Flange Mount, 2 Key Holes in Wire Housing
