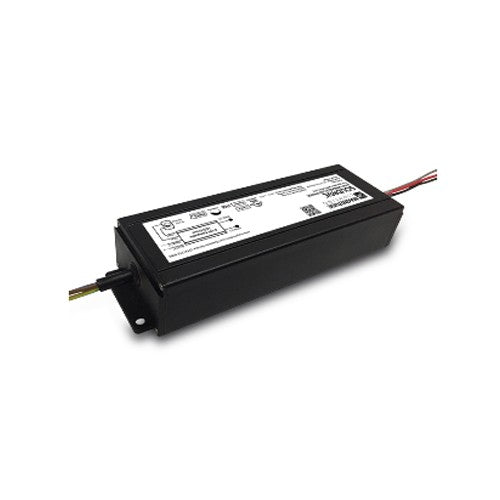

Magnitude Lighting CVD50R12DC

CVD50R12DC Product Description

The Magnitude Lighting CVD50R12DC Electronic Constant Voltage LED driver powers fixtures up to 50 watts and produces a 12V DC output. This constant voltage power supply uses 120-277V input with 4200 mA amp rating.

Specifications:

Manufacturer: Magnitude Lighting
SKU: CVD50R12DC
Family: Constant Voltage 0-10V-Dimmable LED Driver
Dimmable: Yes
Length (in): 6.8''
Width (in): 2.36''
Height (in): 1.4''
Voltage (V): 120-277VAC
Input Current: 0.96A Max
Bulb Type: LED
IP Rating: IP65
Output Voltage: 12V
Output Current : 4.2A
Output Power: 50W Max
Power Factor: > 0.95
Type: Constant Voltage
Start Temp. (Min: -25ºc
Start Temp. (Max): +40ºc
THD: < 20%
Mounting Length: 7.5''
Weight (lb.): 1.725
UL Listed: UL 8750, class 2, Class P
Warranty: 5-year warranty

About Magnitude Lighting:

Magnitude Lighting’s advanced LED drivers and transformers bring innovation to commercial and residential lighting. Magnitude Lighting is an independent LED power company that focuses on LED drivers and transformers for Commercial, Industrial and Residential applications. With a remarkable longevity in LED Technology since 2008, Magnitude Lighting was one of the first companies in the industry to bring dimmable LED drivers into the lighting market.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
