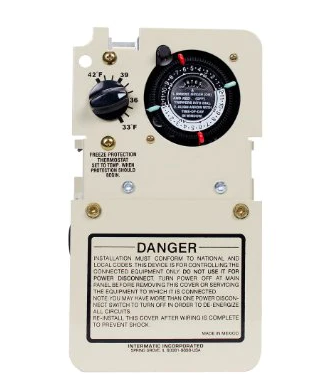

Intermatic PF1103MT

PF1103MT Product Description

The Intermatic PF1103MT is a one-circuit freeze protection control that includes time control and a thermostat for 120/240V installations. This control is created for protection of pool and spa equipment against freezing. When the temperature drops below the thermostat set one, which is user-adjustable, the control turns On the pump with the heater. With this model, your equipment is both automated and protected due to the timer switch and freeze protector. You can also enclose your Intermatic PF1103MT into T10000R, T30000R, and T40000 panels for safety and protection.

Features:

Includes thermostat with mechanism
Protect pool/spa equipment against freeze damage
Turn pump and heater ON when outdoor temperature drops below user-adjustable set point on thermostat

Specifications:

Enclosure: No
Mechanism: Yes
Voltage: 120/240 VAC
HP: 1.5/3
Thermostat Range: 33°F to 42°F (0.6°C to 5.5°C) with 5°F differential
Applications: Filter pumps, Filter pump/booster combination, waterfalls, water features
Accessories: 156PB10398A, 2T2485GA, 2T2502GA

About Intermatic:

Our product portfolio broadened to include industrial- and commercial-grade controls starting in 1990 and would soon expand with a variety of progressive, energy-saving solutions. Today, Intermatic offers an extensive catalog of lighting and energy controls, surge protection devices, weatherproof covers, and Wi-Fi-enabled solutions as we continue to evolve and push the industry forward.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
