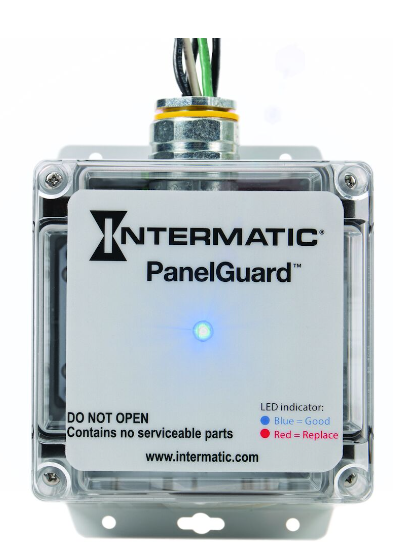

Intermatic L5F13Y3DG2

L5F13Y3DG2 Product Description

Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations.

Features:

Type 1 surge protection
Optional audible alarm and dry relay contacts
4 Modes of protection
NEMA 4X enclosure for indoor or outdoor installation
Individually integrated disconnect TPMOV surge protection technology
Blue LED protection status indicator, and red LED service indicator

Specifications:

Stock Code L5F13Y3DG2
Brand Intermatic
UPC 078275151826
Voltage (V) 347/600 VAC
Width (in) 4.81''
Height (in) 6.46''
Depth (in.) 3.54''
Color Gray
Enclosure Rating NEMA 4X
Phase Three Phase
Operates Distribution Panel; Service Entrance
Type Type 1
Start Temp. (Min) -40°C (-40°F)
Start Temp. (Max) 80°C (176°F)
UL Listed RoHS,CSA
Warranty 5-Year limited

About Intermatic:

Our product portfolio broadened to include industrial- and commercial-grade controls starting in 1990 and would soon expand with a variety of progressive, energy-saving solutions. Today, Intermatic offers an extensive catalog of lighting and energy controls, surge protection devices, weatherproof covers, and Wi-Fi-enabled solutions as we continue to evolve and push the industry forward.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
