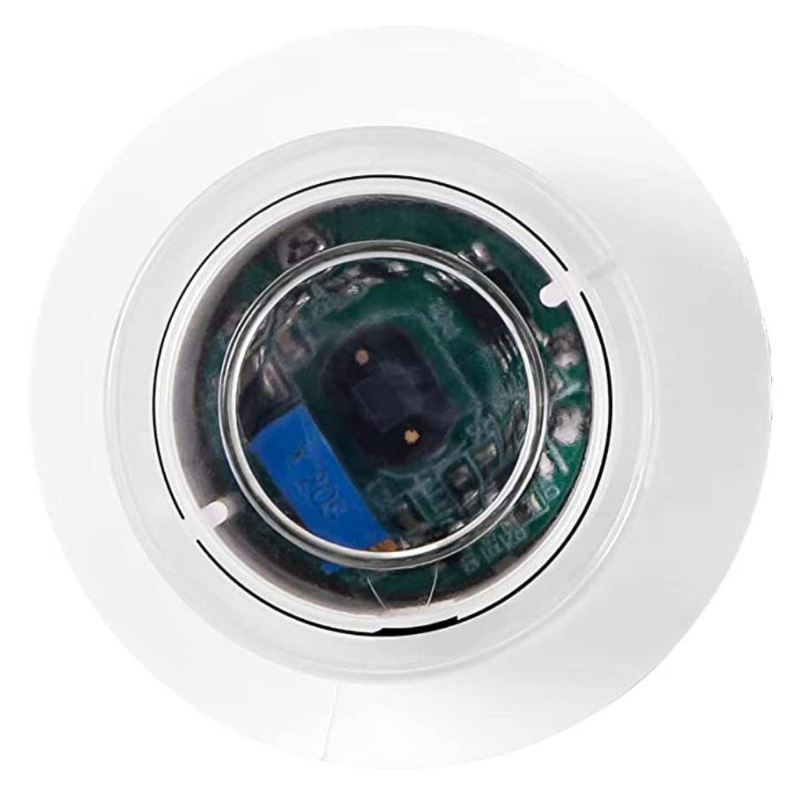

Enerlites MPL-010-W

MPL-010-W Product Description

The ENERLITES MPL-010 is a daylight sensor that detects the natural light in an area to adjust brightness levels accordingly. The MPL-010-W  Indoor Daylight Harvesting Sensor is a 24-volt input, 2-wire photosensor that sends a 0 – 10 volt, analog signal with light level into a lighting control system or building automation system. An ideal solution to meet California Title 24 or ASHRAE 90.1 daylight harvesting needs, this closed-loop photosensor is mounted on the ceiling (with an adhesive pad) pointing downward about 6 to 8 feet from the window. The Fresnel lens provides a precise 60-degree cone of reference and measures the light reflected from the task (floor). This Class 2, low voltage sensor is factory calibrated to 140-foot candles and can send a 0 – 10 volt output signal up to 300 feet. It has a fixed, 15-second, full-range time response. The temperature range is -40° to 140°F (-40° to 60°C).

Specifications:

Brand Enerlites
MPN MPL-010-W
UPC 883951800451
Product Category Wiring Devices & Light Controls
Product Type Lighting Sensors
Input Voltage 24V
Amps Rating 50 mA
Color Finish White
Operating Temperature 32F to 131F
Location Indoor
Sensor Mounting Height Low mount
Power Pack Required yes
Compatible Bulb Type LED
Load Type LED, 0-10V
Control Operation Wired

About Enerlites:

Enerlites is the leading national supplier of lighting controls and wiring devices. Their catalog includes patented products that concentrate on energy efficiency, high quality, and the application of cutting-edge tech

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
