Sold Out

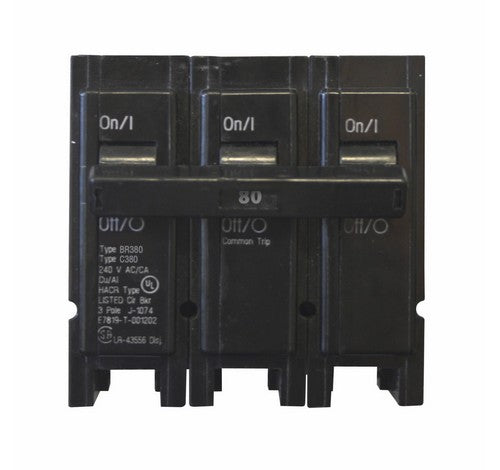

Cutler Hammer BR380 80Amp 1-inch Three-pole Plug-On Circuit Breaker 240V

2 sold in last 8 hours

BR380

$119.00
customers are viewing this product
A Branch Feeder Type Arc Fault Circuit Interrupter is a device intended to mitigate parallel arcing faults in the complete circuit, including connected cords. Parallel arcing faults can occur from line to neutral or line to ground. These arcing faults are in parallel with the load and produce the most energy of all arcing faults.Moreover It's a type BR 10,000 Amperes Interrupting Capacity 120 VAC and 120/240 Vac

FEATURE :

Product Name : Type BR 1-inch Plug-on Circuit Breaker
Catalog Number : BR380
Compliances : Federal Specifications Classification W-C375
Certifications : UL489
Dimensions:
Height: 4 IN
Length: 3.25 IN
Width: 3 IN
Weight:1 LB
Limited lifetime residential, 1 year commercial

SPECIFICATIONS :

Amperage Rating: 80A
Interrupt Rating: 10 kAIC
Number Of Poles: Three-pole
Voltage Rating: 240V
Mounting: Plug-on
Main Circuit Breaker: BR
Trip Type: Common
Wire Size: #4-1/0 AWG Cu/Al
Quantity: Q28
Used With: Type BR Loadcenters
UPC:782114103098
Certifications: UL489
Product compliance: Federal Specifications Classification W-C375
Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
