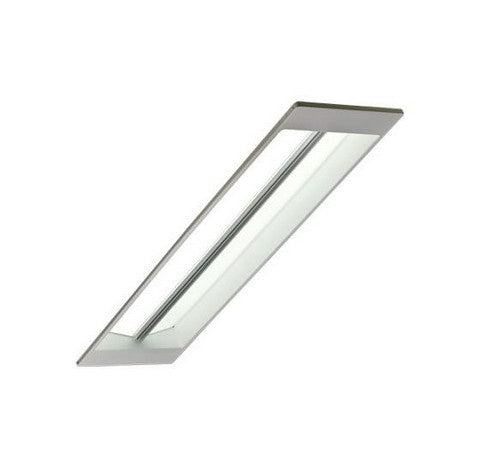

CREE LED Lighting CR14-40L-KK-10V-HD 44W 1x4 Architectural LED Troffer Light Fixture 0-10V Dimming

This 44 watt CR14 (HD) 1x4 Architectural LED troffer provides high-quality light with an 80+ CRI color quality, 4000 lumens, and in a color temperature of 3000K. The lightweight design of the CR14 troffer allows for easy application for either commercial new construction or renovated spaces. This troffer also provides 0-10V dimming options.

FEATURES :

Utilizes Cree TrueWhite® Technology (90 CRI) or available in 80+ CRI
Active Color Management
Room-Side Heat Sink
Assembled in the US & Mexico
Efficacy: 90
Delivered Light Output: 2200, 3100, 4000, 5000 lumens
Input Power: 44 watts
CRI: 90 CRI (Cree TrueWhite® Technology), 80+ CRI
CCT: 3000K, 3500K, 4000K, 5000K
Input Voltage: 120-277 VAC or 347 VAC
Warranty†: 10 years
Lifetime: Designed to last from 50,000 hours (HD), 75,000 hours (Standard TW), and 100,000 hours (HE TW)
Controls: Step Level to 50%, 0-10V Dimming or Lutron EcoSystem Enabled to 5%
Mounting: Recessed

SPECIFICATIONS :

CREE TRUEWHITE® TECHNOLOGY
A revolutionary way to generate high-quality white light, Cree TrueWhite® Technology mixes the light from the highest performing red and unsaturated yellow LEDs. This patented approach delivers an exclusive combination of 90+ CRI, beautiful light characteristics, and lifelong color consistency, all while maintaining high luminous efficacy—a true no compromise solution.

ROOM-SIDE HEAT SINK
An innovative thermal management system designed to maximize cooling effectiveness by integrating a unique room-side heat sink into the diffusing lens. This breakthrough design creates a pleasing architectural aesthetic while conducting heat away from LEDs in a temperature-controlled environment. This enables the LEDs to consistently run cooler, providing significant boosts to lifetime, efficacy, and color consistency.

CONSTRUCTION & MATERIALS
Durable 20-gauge steel housing with standard troffer access plate for electrical installation
Field replaceable light engine integrates LEDs, driver, power supply, thermal management, and optical mixing components
One-piece lower reflector finished with a textured high reflectance white polyester powder coating
Provided t-bar clips and holes for mounting support wires enable recessed or suspended installation
Individual fixtures may be mounted end to end for a continuous row of illumination

OPTICAL SYSTEM
Unique combination of reflective and refractive optical components achieves a uniform, comfortable appearance while eliminating pixelation and color fringing.
Components work together to optimize distribution on all surfaces and increase spaciousness
Diffusing lens integrated with upward-facing LED strip eliminates direct view of LEDs while lower reflector balances brightness of lens with the ceiling to create a low-glare high angle appearance

ELECTRICAL SYSTEM
Integral, high-efficiency driver and power supply.
Power Factor = 0.9 nominal
Input Power: Stays constant over life.
Input Voltage: 120-277V, 347V- 50/60Hz
Battery Backup: Consult factory.
Temperature Rating: Designed to operate in temperatures 0-35 C and below room side and plenum side.
Total Harmonic Distortion: < 20%

CONTROLS
Step dimming to 50% comes standard.
Optional continuous dimming to 5% with 0-10V DC control protocol.
Optional Lutron EcoSystem® Enabled option allows seamless integration with Lutron EcoSystem controls.

REGULATORY & VOLUNTARY QUALIFICATIONS
UL924 (EB14 option).
cULus Listed.
DLC qualified.
Suitable for damp locations.
Designed for Indoor use.

Best Seller Product: No
UPC: 810048021352
Call For Price: No
Type of Area: Gas Station & Convenience Store, Large Retail & Open Areas, Office & Small Retail
Ballast Factor: 1.00
Certifications: CUL Listed, DLC Approved, Lighting Facts, ROHS, UL Listed
Color Temp: 3000K
Dimmable: Yes
Lamp Life: 50,000 hours
CRI: 80

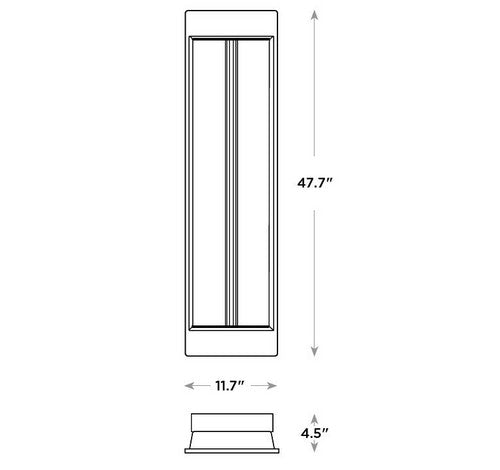

Dimensions: 47.7" x 11.7" x 4.5"
Length: 47.7"
Width: 11.7"
Height: 4.5"
Lumen Output: 4000
Manufacturer: CREE
Product Warranty: 10 Year
Part Number: CR14-40L-30K-10V-HD
Minimum Start Temperature: 32 Deg F
Technology: LED
Voltage: Multivolt 120V-277V
Wattage: 45 Watt
Weight Each: 12.00 lbs
Ballast Start Type: Instant Start
Fixture Type: 1 x 4 Ft - New Fixture
Fixture Length: 4 Feet / 48 Inches
Beam Angle: Normal

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
