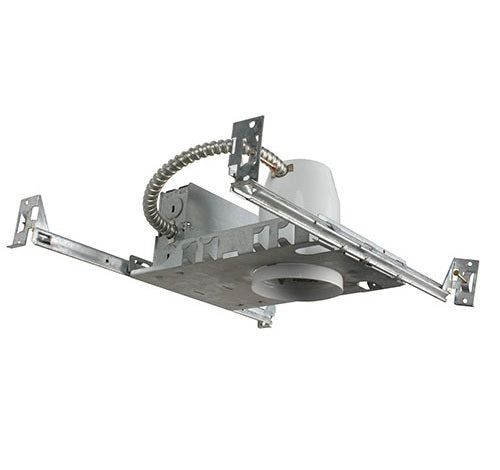

3" LED Can New Construction IC/Air Tight LS-3-IC-AT

LED dedicated IC housing,LS-3-ic-at is designed for new construction installations and suitable for use ceiling where the housing can be direct contact with insulation. Air tight construction reduce energy cost by reducing the amount of air leakages trough the ceiling.

SPECIFICATIONS:

Housing:

Plaster Frame: Galvanized steel construction. The housing can be removed from plaster frame to provide access to the junction box.

Junction Box:

Listed for through branch circuit wiring.
Contains one 1-1/9”, six 7/8 knockouts and four Romex pry outs with strain relief.

Bar Hanger:

Pre-installed Real nail easily installs in regular lumber,engineered lumber.
Bar Hangers are adjustable from 13-5/8” to 25” and can be re-positioned 90 degree on plaster frame.

Listings:

CULUS Listed for DAMP Location
CULUS Listed for feed Trough
Certified under ASTM-E283 for Air tight construction
Meets state of California title 24 requirement
